Adam Hall 19" Parts

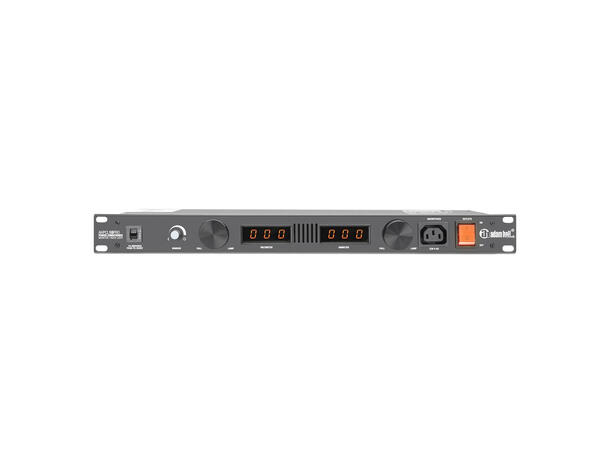

PCL 10 PRO

Power Conditioner with voltmeter and ammeter and rack lighting

• Reliable protection against over-voltage and impulse voltage
• Effective high frequency filter against interference

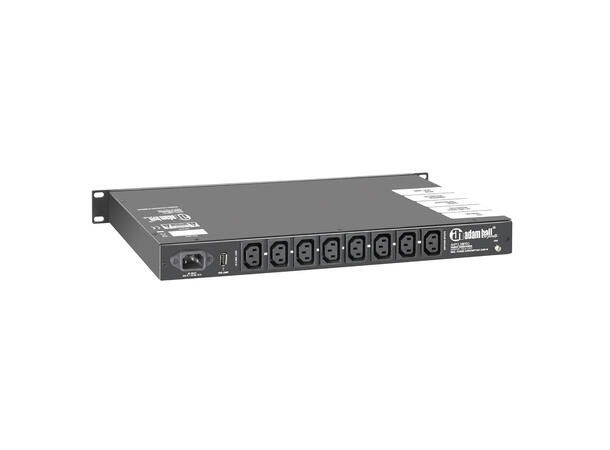

• Central power supply with 8 switchable IEC sockets
• Unswitched convenience socket on the front
• Resettable circuit breaker on the front panel
• 2 pull-out LED rack lights with dimmer
• LED gooseneck lamp with USB connection for the lighting of the rack
• Volt and ammeter with easy-to-read display

• Specifications

  General

  Product type

  19" rack mains socket strips

  Type

  19" / 1 U

  Number of outlets (IEC C14)

  9

  Input voltage

  230 V

  Nominal Impedance

  max 10 A

  Protection Against Impulse Voltage

  neutral conductor to earth, outer conductor to neutral, outer conductors to protection light

  Response Time

  1 ns

  Max. Surge Current

  6000A (8x20 µs pulse)

  Max. Surge Energy

  70 joules per contact

  Noise Cancelling

  <20 dB, 1.5 MHz-200 MHz

  Mains connector

  IEC mains cord

  Fuse

  10 A

  Width

  482 mm

  Height

  44.5 mm

  Depth

  190 mm

  Weight

  3,18 kg

  Features

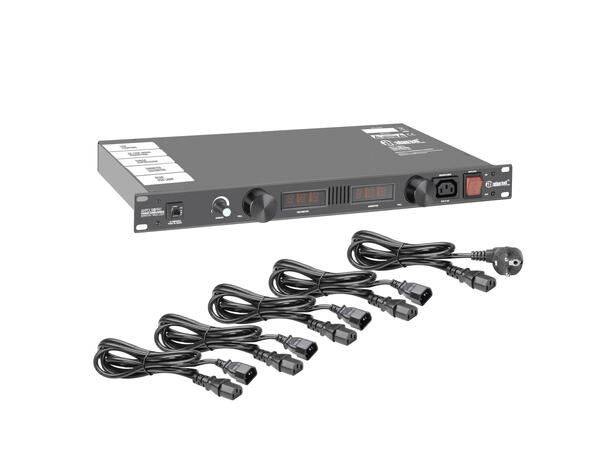

  incl. telescopic rack lights and multimeter, including 4 power cords
