• Reliable protection against over-voltage and impulse voltage
• Effective high frequency filter against interference
• Central power supply with 8 switchable IEC sockets
• Unswitched convenience socket on the front
• Resettable circuit breaker on the front panel

Type: 19" / 1 U

Number of outlets (IEC C14): 9

Input voltage: 230 V

Nominal Impedance: max 10 A

Protection Against Impulse Voltage: outer conductor to neutral

Response Time: 1 ns

Max. Surge Current: 6000A (8x20 µs pulse)

Max. Surge Energy:  70 joules per contact

Noise Cancelling: <20 dB, 1.5 MHz-200 MHz

Mains connector: IEC mains cord

Fuse: 10 A

Width:  482 mm

Height:  44.5 mm

Depth: 190 mm

Weight: 2,27 kg

Features: including 4 power cords

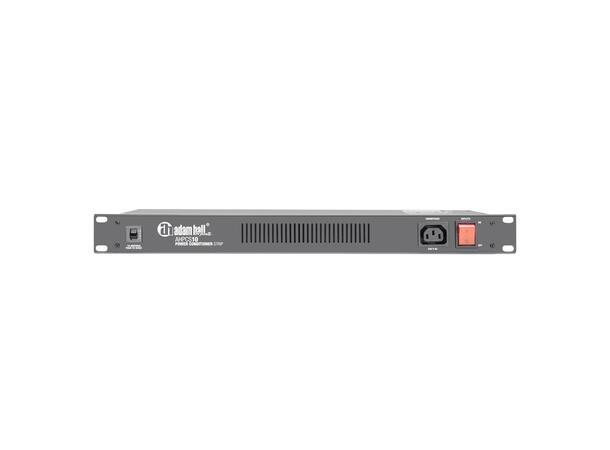

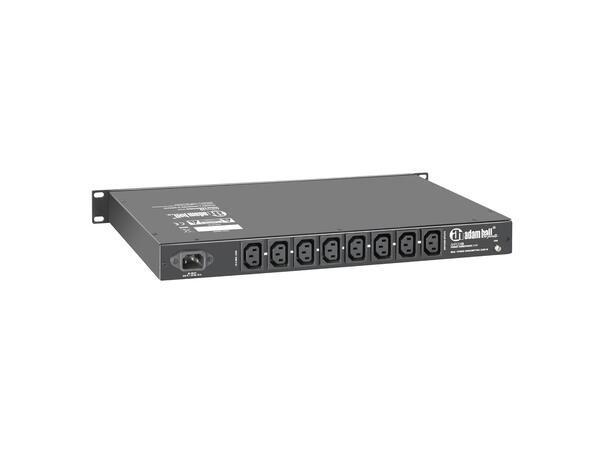

In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.

All AH power conditioners are supplied with four IEC connection cables.
