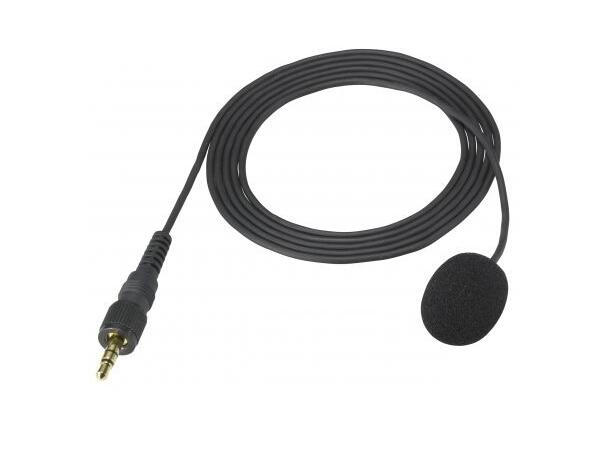

The ECM-HZ1UBMP works with the ZTX-B02RC body-pack transmitter and is supplied with the DWZ-B70HL package. The uni-directional electret condenser lavalier microphone is ideal for commercial sound applications such as presentations, lectures and conferences. Comes supplied with mic holder clip and windscreen.
General Specifications
Capsule Type Electret Condenser
Frequency Response 60 Hz to 18 kHz
Directivity Uni-directional
Sensitivity -36 dB +/-3.0 dB (1 kHz/Pa)
Dynamic Range 94 dB or more
S/N Ratio 68 dB or more
Inherent Noise (0dB=20µPa) 26 dB SPL or less
Induction Noise from External Magnetic Field -
Wind Noise -
Max SPL (dB SPL)(0dB=20µP) 120 dB SPL
Connector BMP type. Supplied with 3.5 mm diameter, 3-pole mini plug
Cable Length 3.9 feet
Power Requirements DC 5V
Dimensions 19/32" diameter x 1"
Weight 0.18 oz (without connector)
