MOTU 24A Audio interface med 24 analoge innganger, AVB Ethernet og USB med DSP
Motu AVB serien nettverk lydkort med Thunderbolt og USB
Motu sin AVB serie lydkort til meget bra lydkvalitet og ultralav latency. Alle interfacene kan brukes på vanlige samplerates fra 44,1 – 192 kHz, og kobles til computeren med Thunderbolt 1/2 eller USB 2/3. Det er mulig å bruke interfacene som standalone miksere med opptil 48 kanaler med Analog modeling EQ og effekter. AVB er en ny standard for overføring av lyd over Ethernet, og alle interfacene har denne, samt Wordclock i/o – perfekt om man vil bygge et større system. Lydkortene kan benyttes som lydkort direkte over AVB Ethernet på nyere mac med Yosemite installer. MOTU også laget en egen AVB hub, som skal være særlig fin med tanke på lydoverføring i systemer med flere enheter. Serien består av følgende enheter:
1248
4 micpreamper med XLR-tilkobling og 63 dB forsterking. to hi-z jackinganger, og to hodetelefonforsterkere i front. 8 analoge inn på balansert jack, 12 analog ut på balansert jack. 16 ADAT i/o – eller 8 ADAT SMUX i/o. Maksimum 32 innganger og 34 utganger.
8M
8 preamper kombinert XLR/Jack og 53 dB forsterking. 8 analoge utganger på balansert jack, en hodetelefonforsterker. 16 ADAT i/o – eller 8 ADAT SMUX i/o. Maksimum 24 innganger og 26 utganger.
16M
16 analoge i/o balansert jack. 16 ADAT i/o – eller 8 ADAT SMUX i/o. Maksimum 32 innganger og 34 utganger
24Ai
24 analoge innganger på 25 pin D-Sum eller Phoenix (Euroblock) kontakter. 24 ADAT i/o –Maksimum 24 innganger og 48 utganger
24Ao
24 analoge utganger på 25 pin D-Sum eller Phoenix (Euroblock) kontakter. 24 ADAT i/o –Maksimum 24 innganger og 48 utganger

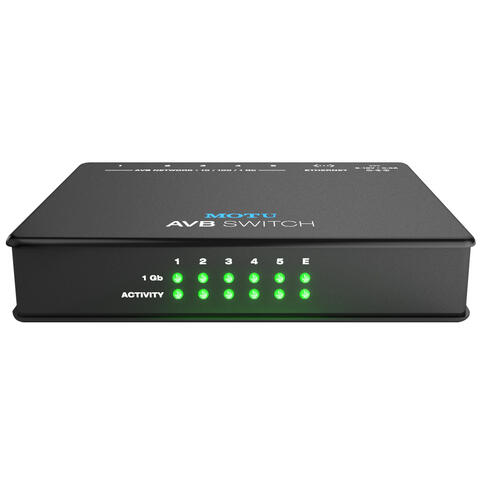

AVB Switch
Fem porters 1-Gigabit AVB switch til en meget hyggelig pris.
A shared technology platform
The 24Ai and 24Ao share the same extensive feature set and technology platform as the 1248, 8M and 16A, including very high quality analog performance, digitally controlled analog trim on analog inputs, 32-bit DAC trim on analog outputs, 48-channel mixing modeled after large format mixing consoles, DSP effects with 32-bit floating point precision, flexible matrix-style routing and splitting, stand-alone operation, Wi-Fi control, and industry-standard AVB networking with sub-millisecond network latency.
24Ai and 24Ao feature highlights
- Superb audio quality — Employs the same industry-recognized analog design as MOTU's groundbreaking 1248, 8M and 16A audio interfaces.
- 72 simultaneous audio channels — 24 high-quality, balanced analog inputs (24Ai) or outputs (24Ao) on three banks of multi-channel connectors (D-sub and Phoenix), plus three banks of 8-channel ADAT optical for 24 analog channels and 48 digital channels.
- Universal connectivity — Connects to a computer with audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
- On-board DSP with mixing and effects — Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.
- 32-bit floating point processing — DSP-driven mixing and effects engine delivers virtually unlimited headroom and the utmost in sound quality.
- Modeled vintage effects processing — Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
- The MOTU AVB Switch for system expansion and AVB audio networking.
System expansion — Add a 2nd MOTU AVB interface (24Ai, 24Ao, 1248, 8M or 16A) with a simple Cat-5e Ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). - AVB audio networking — Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
- Matrix routing and splitting — Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
- Web app control — Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.
- Stand-alone mixing with wireless control — Connect an Apple Airport™ or other Wi-Fi router directly to the 24Ai or 24Ao with a standard Ethernet cable and control powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing.
- ADAT digital I/O — Use the 24Ai or 24Ao as a 24-channel optical expander for other gear. 24 channels at 44.1/48 kHz or 12 channels at 88.2/96 kHz.
- Comprehensive metering — The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
- AudioDesk 4.0 — Includes AudioDesk workstation software with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
