Microtech Gefell M 92.1 S Rør mikrofon Rør, cardioid, EA92, sølv Microtech Gefell M 92.1 S Rør mikrofon Rør, cardioid, EA92, sølv

Microtech Gefell M 92.1 S Rør mikrofon

Rør, cardioid, EA92, sølv

Varenr: MG-211189
-+
Bestillingsvare (5 dager)

Jesper Kolvig

Salgssjef

+47 23 19 96 07









BeskrivelseTeknisk infoRESSURSER
Beskrivelse

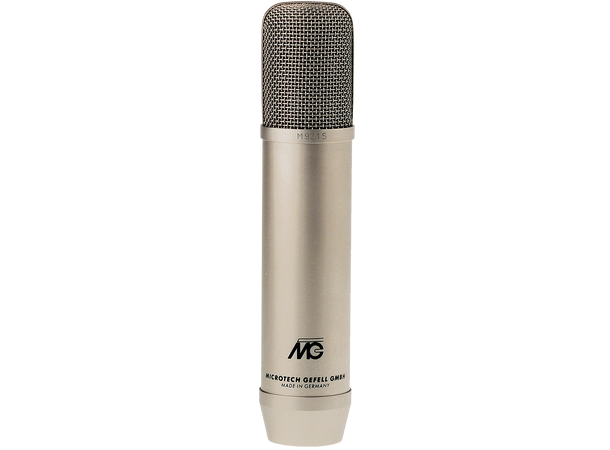

Microtech Gefell M 92.1 S Rør mikrofon

The M 92.1 S is renowned for its high sensitivity and excellent signal-to-noise ratio. It has the typical warm, full-bodied sound of tube microphones that are preferred by vocalists and soloists.The M 92.1 S vacuum tube condenser microphone is suited for difficult radio play recordings as well as a supporting microphone for orchestra recordings. The renowned pressure gradient transducer of the M 92.1 S uses two large diameter gold-plated plastic dia-phragms. The vacuum tube preamplifier is equipped with a pentode working as a triode selected for its sonic characteristics.

The N 920.1 power supply provides the operating voltage for the vacuum tube condenser microphone. It can be powered from AC mains with a primary voltage of 115 or 230 volts / 50 or 60 Hz. For cable lengths over 50 meters it is recommended to have yourservice provider set the heater voltage of the power supply to 5.8 volts. The N 920.1 is equipped with an on/off-switch, a 7-pin Tuchel connector that powers the microphone and a 3-pin XLR connector with integrated line voltage selector.

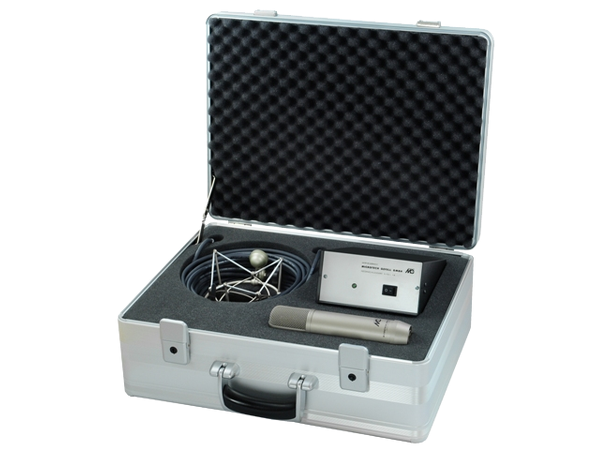

The M 92.1 S is packed in a wooden case and comes with power supply N 920.1, connection cable C 92.1and elastic suspension EA 92.
The microphone is available in a satin nickel or a finish.

  • Polar pattern: cardioid
  • Acoustical operating principle: Pressure gradient transducer
  • Frequency range: 40 ... 18000 Hz
  • Sensitivity at 1 kHz: 19 mV / Pa
  • Rated impedance: 200 Ω
  • Equivalent loudness level due to inherent noise
  • CCIR 468-4 (qps): 25 dB
  • DIN EN 60651: 15 dB - A
  • Signal-to-noise ratio (re 1 Pa at 1 kHz)
  • CCIR-weighted: 69 dB
  • A-weighted: 79 dB
  • Max. SPL for THD ≤ 0,5 %: 103 dB
  • Total dynamic range of the microphone amplifier: 106 dB
Teknisk info

Produktinformasjon

Mikrofontype Rør
