Cordial CSE NN 6-SD CAT6
Our outdoor festival data transporter for long distance signal transmissions

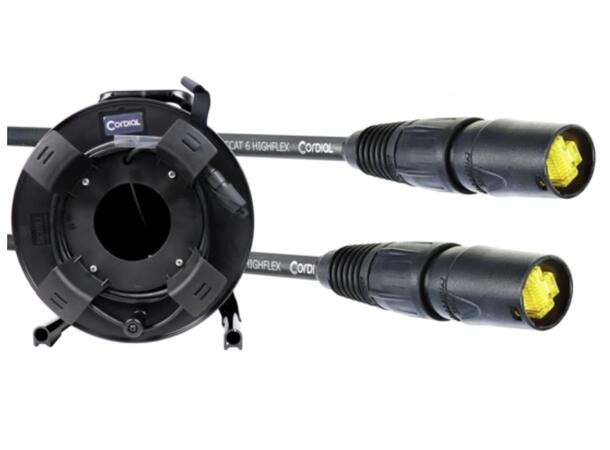

Our Cat 6 network cable CSE NN 6-SD is our long-distance version of the CSE NN 6 Ethernet cable and is available in length variants of 50 and 75 meters. To ensure easy and simple handling these lengths are reeled onto especially break-proof GT 310 drums made by SCHILL®.

Its conductors are both stable and flexible. The cable is especially suited for outdoor use because it is weather-resistant, halogen-free and flame-retardant because it is based on our CCAT 6 Highflex bulk cable and features a sturdy PUR jacket.

Annoying cross talk effects are minimized -without limiting the cable’s flexibility - by a special “separate cross” technology inside the cable.
In addition, a so-called SF/UTP double shielding reduces interference considerably, thus allowing a higher bandwidth of 250 MHz.

In addition, the robust NEUTRIK® cable guard NE8MX-B-1 thoroughly protects the RJ45 connectors HIROSE® and transparent shrink-on tubing allows neat and systematic labeling for all areas of application.

Bulk cable: CCAT 6 HIGHFLEX
Jacket: PUR

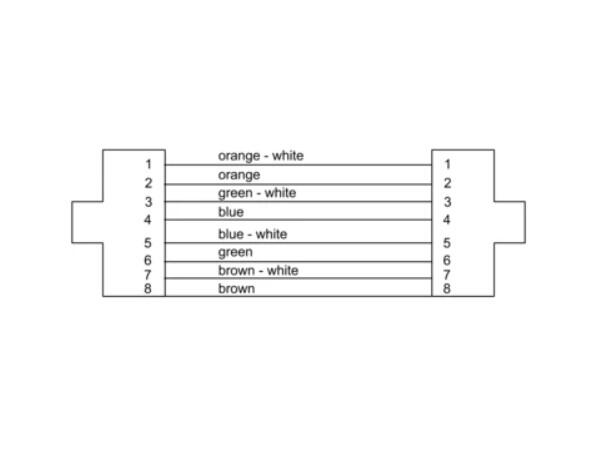

Cable assign: RJ45 Pinout T568B
Connector brand: NEUTRIK ® / HIROSE ®

Plugs
1x NEUTRIK® NE 8 MX-B-1 + HIROSE® RJ45 TM31
1x NEUTRIK® NE 8 MX-B-1 + HIROSE® RJ45 TM31
