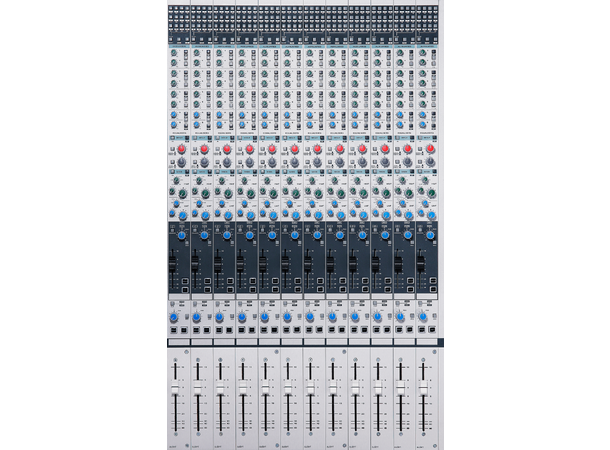

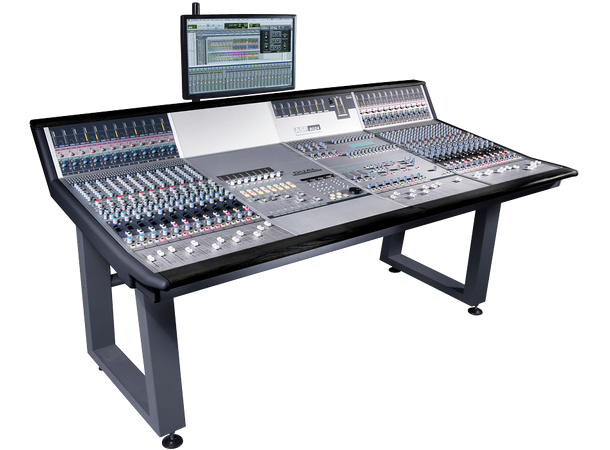

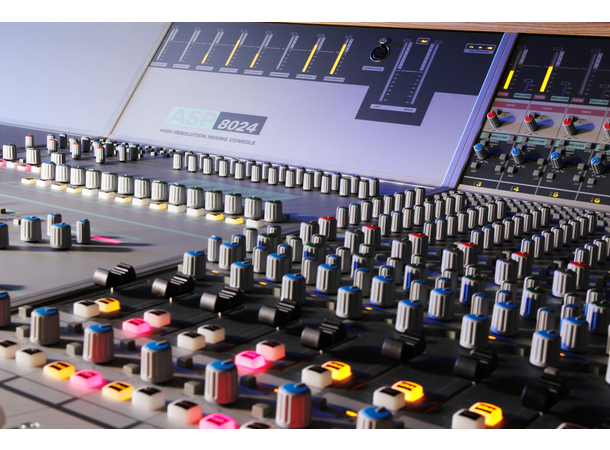

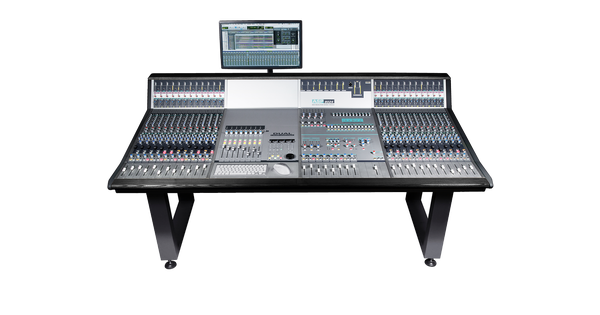

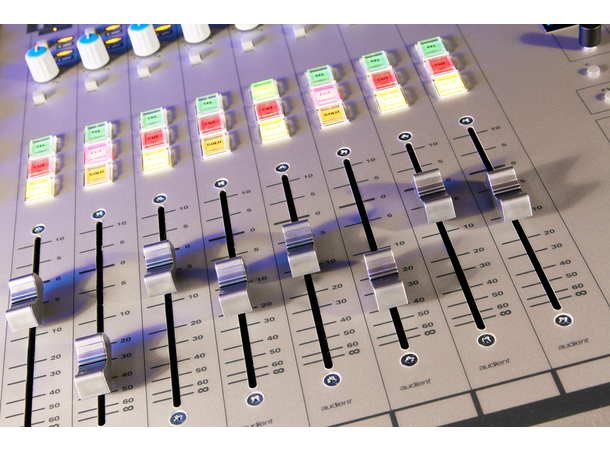

Audient ASP 8024 Mikser



A powerful, flexible and intuitive console, ASP8024 brings superb audio performance from one of the world's most experienced and successful console engineering teams. David Dearden and Gareth Davies, the founders of DDA, have pooled their combined experience of over fifty years to produce a console that provides sound quality and features normally associated with consoles with a higher price tag.



Far from a retrograde step, analogue mixing provides the clarity and quality demanded of the best ears in the business for both tracking and mixing stages and ASP8024's future-proof design ensures its continued compatibility and seamless integration with digital equipment.



Moreover, thanks to innovative design and construction processes, ASP8024 delivers exceptional audio quality and features at an unrivalled price.



Key features:

   * Full-feature in-line architecture.
   * 80 inputs in on 36 channel version.
   * Full 24-track routing.
   * Ergonomic control surface with clear status feedback.
   * Extended range, splittable equalisers.
   * 14 auxiliary busses.
   * Unique modular construction for easy serviceability.
   * Integral compressors on stereo bus.
   * Selection for Main plus 3 alternate control room speakers.
   * Comprehensive communications.



TECHNICAL SPECIFICATION

FREQUENCY RESPONSE
Mic input to Mix output  <+0,-0.3dB 20Hz-20kHz @ 6-40dB gain.
Line input to Mix output  <+0,-0.3dB 20Hz-20kHz @ 0dB gain.

THD AND NOISE AT +20dB OUTPUT
Mic XLR input to any output  <0.005% at 1kHz
Line input to any output  <0.005% at 1kHz
Tape input to any output  <0.003% at 1kHz

NOISE
Mic EIN (20-20kHz, 150R source)  <-127.5dBu
Bus noise (no inputs routed)  <-93dBu
Bus noise (36 inputs routed)  <-78dBu

MIC CMRR
 70dB (Min gain) 75dB (Max gain)

CROSSTALK AND MUTE ATTENUATION AT 1kHz
Short fader Mute  >90dB
Long fader Mute  >90dB
Mix assign  >90dB
Bus assign  >90dB

MAXIMUM INPUT
Mic  >+21dBu (min gain)
Line  >+30dBu (min gain)
Insert return  >+21dBu

MAXIMUM OUTPUT INTO 2k OHMS
Mix output  >+26dBu
Bus output  >+26dBu
Aux output  >+26dBu
Insert send  >+21dBu
Monitor, Studio, F/B outputs  >+21dBu

DIMENSIONS (mm)
ASP 8024-24  24 channel console  1470 x 1065 x 990
ASP 8024-36  36 channel console  1930 x 1065 x 990
ASP8024-36PB  36 channel console with patchbay  2390 x 1065 x 990
ASP8024-48  48 channel console  2390 x 1065 x 990
ASP8024-48PB  48 channel console with patchbay  2850 x 1065 x 990
ASP 8024-60  60 channel console  2850 x 1065 x 990
