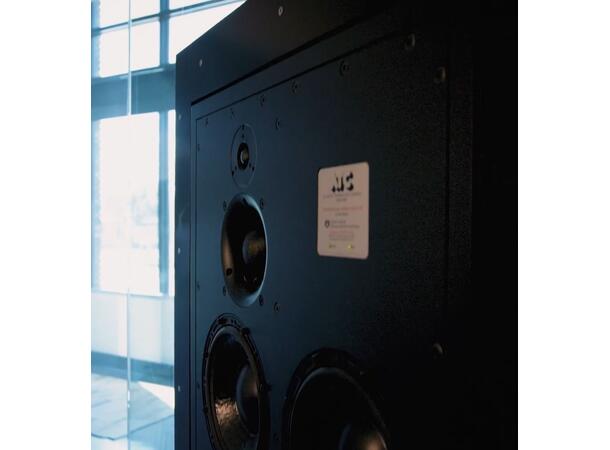

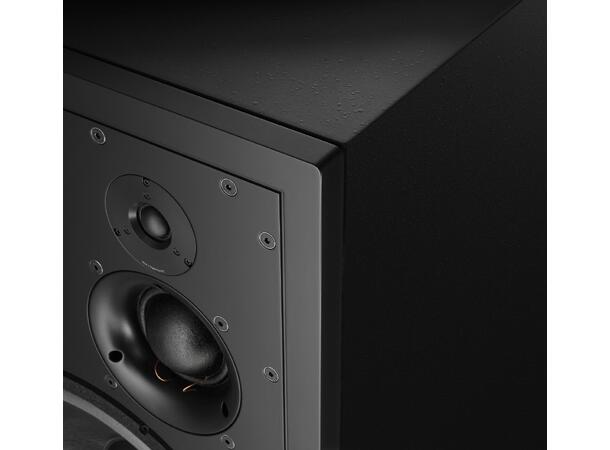

ATC SCM110AIW Pro INSTALL Studiomonitor Square Edge baffle for veggmontering ATC SCM110AIW Pro INSTALL Studiomonitor Square Edge baffle for veggmontering ATC SCM110AIW Pro INSTALL Studiomonitor Square Edge baffle for veggmontering

ATC SCM110AIW Pro INSTALL Studiomonitor

Square Edge baffle for veggmontering

Varenr: SCM110A SL PRO INST
-+
Utsolgt (40 dager)
Send meg mail når varen er på lager
BeskrivelseTeknisk infoRESSURSER
Beskrivelse

ATC SCM110A SL Pro  3veis studiomonitor

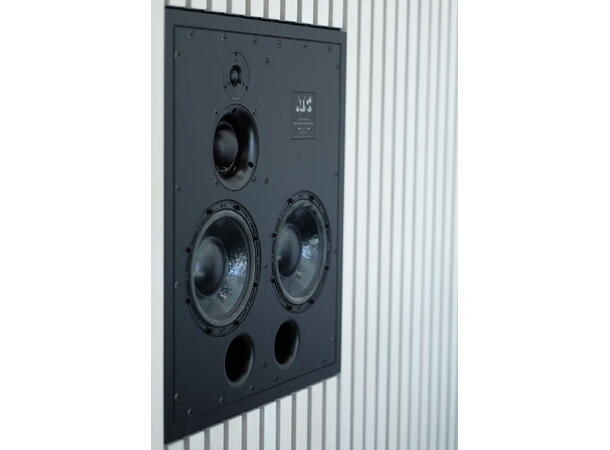

Full-Face Square Edge baffle for in-wall montering

Pris. pr. stk. Gir deg kvalitet, nøyaktighet og ytelse.

Requires remote amp hardware, NL8 speaker cable & 5-pin XLR LED cable - sold seperately. Cable lengths must be specified



The ATV SCM110A Pro is a compact, active 3-way monitor system suitable for larger rooms, based around the same tweeter, midrange and amp configuration as the SCM100ASL Pro, but using dual 9" bass drivers in a larger enclosure. The low-profile SMC 110A comprises twin 9-inch ATC SL bass drivers, an ATC 3-inch soft dome mid and a soft dome one-inch tweeter. Maintaining the strict performance criteria of the taller models of ATC reference monitors, the SMC 110A offers a low profile specifically designed for better sight lines through windows and below obstructions.

Unparalleled functionality and dynamic range, and a 80 x 10 degree dispersion are combined in a monitor system that offers an amplitude linearity of 50 Hz-20 kHz (2 dB). The active design matches six MOSFET amplifier blocks with the drivers to deliver an excellent transient response and a maximum SPL of 115dB. Amplifier output is 50 watts for HF, 100 watts for MF and 200 watts for LF. An LF contour control provides 6 dB of bass boost.

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
  • Twin full “SL” spec 9?/234mm bass driver.
  • ATC 75mm “Super Dome” mid driver.
  • On board ATC grounded source 350W Tri-amp pack.
  • LF contour control.
  • Clip indication.
  • 6 year warranty.

Spesifikasjoner:

Drivers: HF 1?/25mm, Mid 3?/75mm, LF 2x 9?/234mm
Amplitude Linearity (±2dB): 50Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 30Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kO
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 715 x 625 x 420mm (28.2? x 24.5? x 16.5?) Depth with amplifier at rear adds 3?
Weight: 73kg
