ATC R1-350 PRO Remote Single Amp Rack 6U

SCM50/100/110/150 (NEW System) Stk Pris

Varenr: 118064
-+
Bestillingsvare (40 dager)
BeskrivelseAlternativerRESSURSER
Beskrivelse

ATC R1-350 Pro Amp Packs (stk pris)

1-channel remote wall / rack amp 19”/6U. 3-way 350W. Only for new factory build. Price per unit.  Requires NL8 speaker cable & 5-pin XLR LED cable - sold seperately.

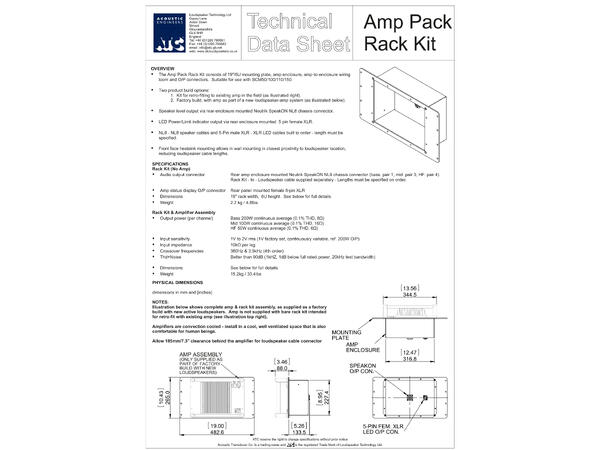

 Full product details are available on the technical datasheet



SCM50/100/110/150ASL Pro Amp Pack Rack Kit

A single channel 6U 19” rack-mount kit is available for the amp employed in the SCM50/100/110/150.  The kit consists of a 19” rack plate, amp enclosure and amp-to-enclosure wiring loom (illustrated right) that can be mounted to the standard amp pack, facilitating rack mounting.  The Amp Pack Rack Kit is available as two options:

• As a kit to retro-fit to an existing amp in the field.

• Factory built, with amplifier as part of a new active loudspeaker system (below-left).

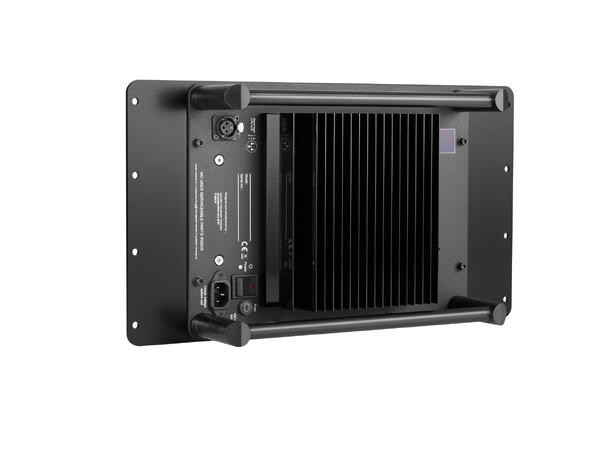

Balanced input is via three pin XLR.  Mains power supply via IEC connector.  Both the audio input and mains power are front panel mounted.  Speaker level output is via a Neutrik SpeakON NL8 chassis connector.  Connections to the cabinet mounted off/on/limit LED is via a five pin female chassis mount XLR.  Both connections are mounted on the amp enclosure at the rear.  Front face heatsink mounting allows in wall mounting in closest proximity to loudspeaker location, reducing loudspeaker cable lengths. Full technical product details are available on the technical datasheet.



OVERVIEW

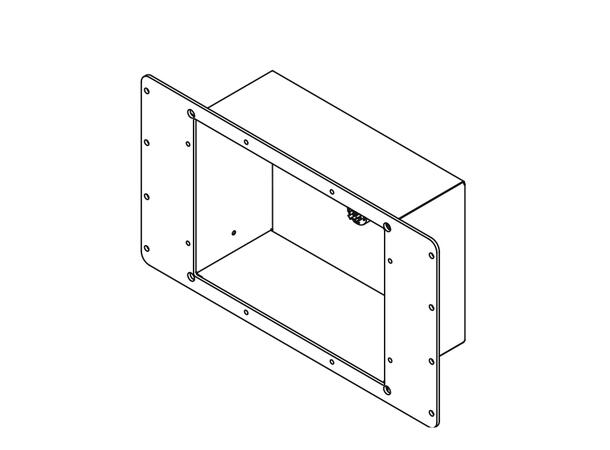

The Amp Pack Rack Kit consists of 19"/6U mounting plate, amp enclosure, amp-to-enclosure wiring loom and O/P connectors.  Suitable for use with SCM50/100/110/150.

Two product build options: 1.  Kit for retro-fitting to existing amp in the field (as illustrated right). 2.  Factory build, with amp as part of a new loudspeaker-amp system (as illustrated below).

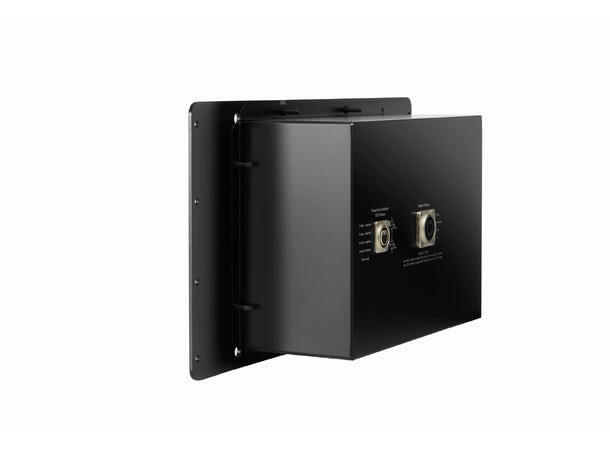

Speaker level output via rear enclosure mounted Neutrik SpeakON NL8 chassis connector.

LED Power/Limit indicator output via rear enclosure mounted  5 pin female XLR.

NL8 - NL8 speaker cables and 5-Pin male XLR - XLR LED cables built to order - length must be specified.

Front face heatsink mounting allows in wall mounting in closest proximity to loudspeaker location, reducing loudspeaker cable lengths.
